PMPB10XNEAX

PMPB10XNEAX

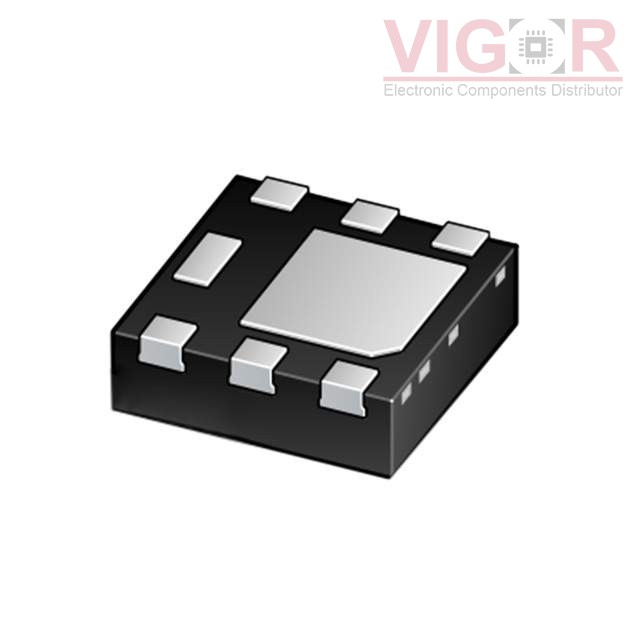

Image is for reference,
please contact us to get the real picture

Part No :

PMPB10XNEAX

Manufacturer
Nexperia
Description
MOSFET N-CH 20V 9A DFN2020MD-6
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
PMPB10XNEAX PDF
Availability
0 pieces
Unit Price
$0.14725

Current price of PMPB10XNEAX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PMPB10XNEAX Specifications
Type Description
Series:Automotive, AEC-Q101, TrenchMOS™
Package:Tape & Reel (TR)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:9A (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
Rds On (Max) @ Id, Vgs:14mOhm @ 9A, 4.5V
Vgs(th) (Max) @ Id:0.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:34 nC @ 4.5 V
Vgs (Max):±12V
Input Capacitance (Ciss) (Max) @ Vds:2.175 nF @ 10 V
FET Feature:-
Power Dissipation (Max):1.7W (Ta), 12.5W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DFN2020MD-6
Package / Case:6-UDFN Exposed Pad
