NP180N04TUK-E1-AY

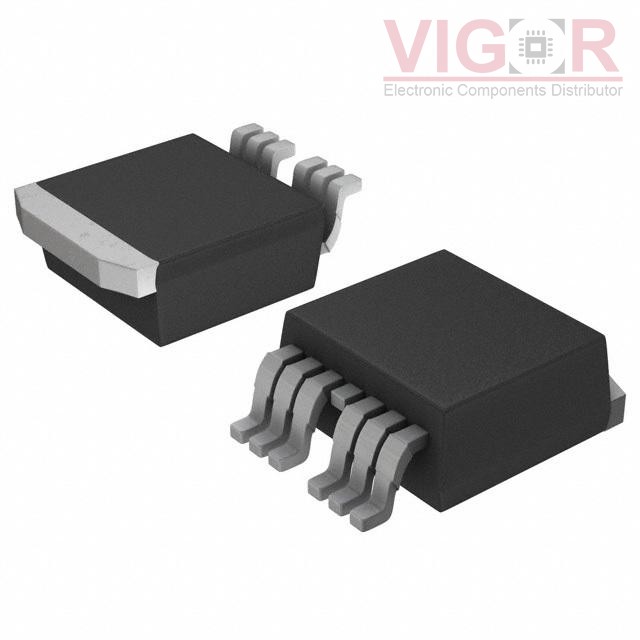

Image is for reference,
please contact us to get the real picture

Part No :: NP180N04TUK-E1-AY

Manufacturer: Renesas Electronics America

Description: MOSFET N-CH 40V 180A TO263-7

Catalog: Transistors - FETs, MOSFETs - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 09 - Jul 13 2025

DataSheet: NP180N04TUK-E1-AY PDF

Availability: 0 pieces

Unit Price: ~~$3.39089~~

Current price of NP180N04TUK-E1-AY is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NP180N04TUK-E1-AY Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	180A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	1.05mOhm @ 90A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	297 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	15750 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	1.8W (Ta), 348W (Tc)
Operating Temperature:	175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TO-263-7
Package / Case:	TO-263-7, D²Pak (6 Leads + Tab)

Please confirm the specifications of the products when ordering.
