NVD5C648NLT4G

NVD5C648NLT4G

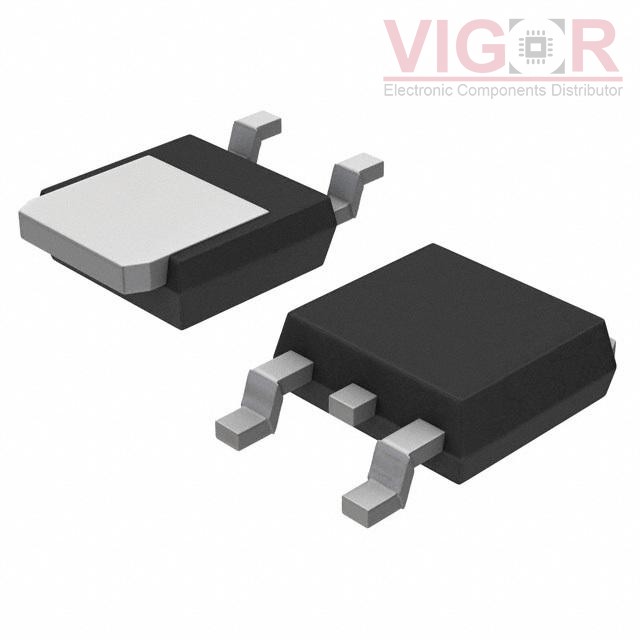

Image is for reference,
please contact us to get the real picture

Part No :

NVD5C648NLT4G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
MOSFET N-CH 60V 18A/89A DPAK
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
NVD5C648NLT4G PDF
Availability
40000 pieces
Unit Price
$0.62386

Current price of NVD5C648NLT4G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NVD5C648NLT4G Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:18A (Ta), 89A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:4.1mOhm @ 45A, 10V
Vgs(th) (Max) @ Id:2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:39 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:2900 pF @ 25 V
FET Feature:-
Power Dissipation (Max):3.1W (Ta), 72W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
