PHD9NQ20T,118

PHD9NQ20T,118

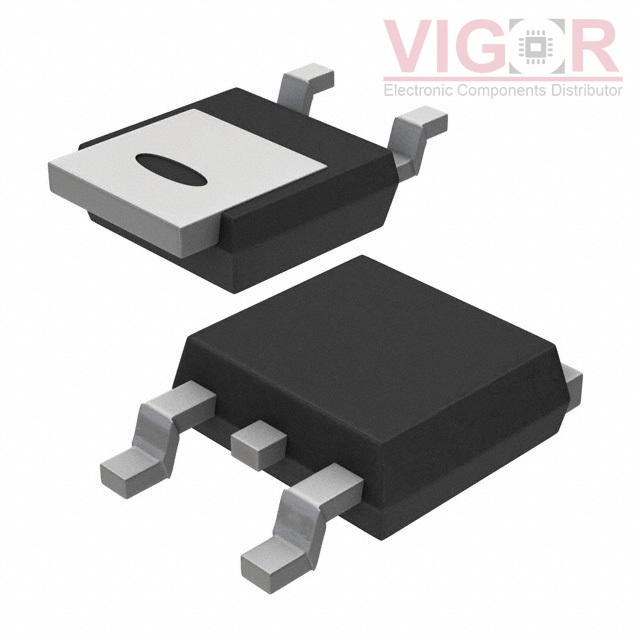

Image is for reference,
please contact us to get the real picture

Part No :

PHD9NQ20T,118

Manufacturer
Nexperia
Description
MOSFET N-CH 200V 8.7A DPAK
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
May 18 - May 22 2024
DataSheet
PHD9NQ20T,118 PDF
Availability
0 pieces
Unit Price
$0.33750

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of PHD9NQ20T,118 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

PHD9NQ20T,118 Specifications
Type Description
Series:TrenchMOS™
Package:Tape & Reel (TR)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):200 V
Current - Continuous Drain (Id) @ 25°C:8.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:400mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id:4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:24 nC @ 10 V
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:959 pF @ 25 V
FET Feature:-
Power Dissipation (Max):88W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
