IPD85P04P4L06ATMA2

IPD85P04P4L06ATMA2

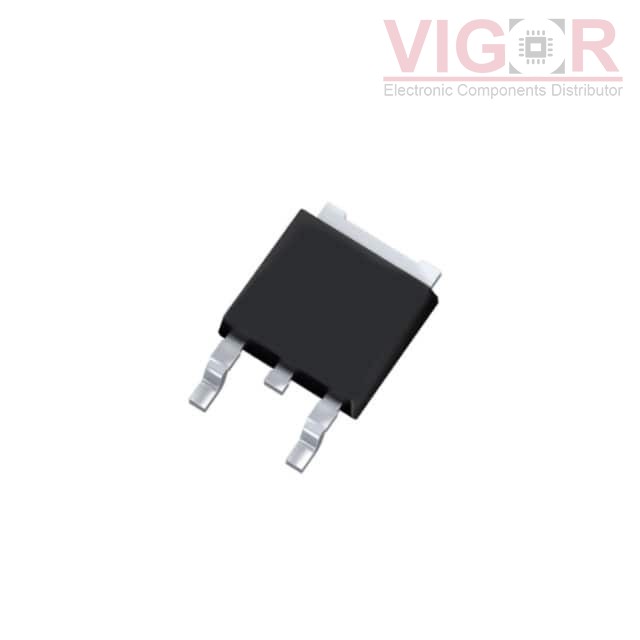

Image is for reference,
please contact us to get the real picture

Part No :

IPD85P04P4L06ATMA2

Manufacturer
IR (Infineon Technologies)
Description
MOSFET P-CH 40V 85A TO252-3
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
May 20 - May 24 2024
DataSheet
IPD85P04P4L06ATMA2 PDF
Availability
0 pieces
Unit Price
$1.65000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of IPD85P04P4L06ATMA2 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

IPD85P04P4L06ATMA2 Specifications
Type Description
Series:OptiMOS®-P2
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:85A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:6.4mOhm @ 85A, 10V
Vgs(th) (Max) @ Id:2.2V @ 150µA
Gate Charge (Qg) (Max) @ Vgs:104 nC @ 10 V
Vgs (Max):+5V, -16V
Input Capacitance (Ciss) (Max) @ Vds:6580 pF @ 25 V
FET Feature:-
Power Dissipation (Max):88W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PG-TO252-3-313
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
