AOD403

Image is for reference,
please contact us to get the real picture

Part No :: AOD403

Manufacturer: Alpha and Omega Semiconductor, Inc.

Description: MOSFET P-CH 30V 15A/70A TO252

Catalog: Transistors - FETs, MOSFETs - Single

Shipped from: HK warehouse

Expected Shipping Date: May 21 - May 25 2024

DataSheet: AOD403 PDF

Availability: 5842 pieces

Unit Price: ~~$1.31000~~

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of AOD403 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

AOD403 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	15A (Ta), 70A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V, 20V
Rds On (Max) @ Id, Vgs:	6mOhm @ 20A, 20V
Vgs(th) (Max) @ Id:	3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	120 nC @ 10 V
Vgs (Max):	±25V
Input Capacitance (Ciss) (Max) @ Vds:	5300 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	2.5W (Ta), 90W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TO-252, (D-Pak)
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

BSS138PW,115

MOSFET N-CH 60V 320MA SOT323

HOT

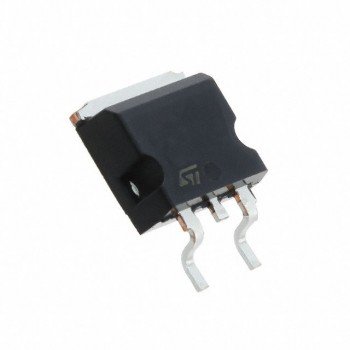

STB18NF30
