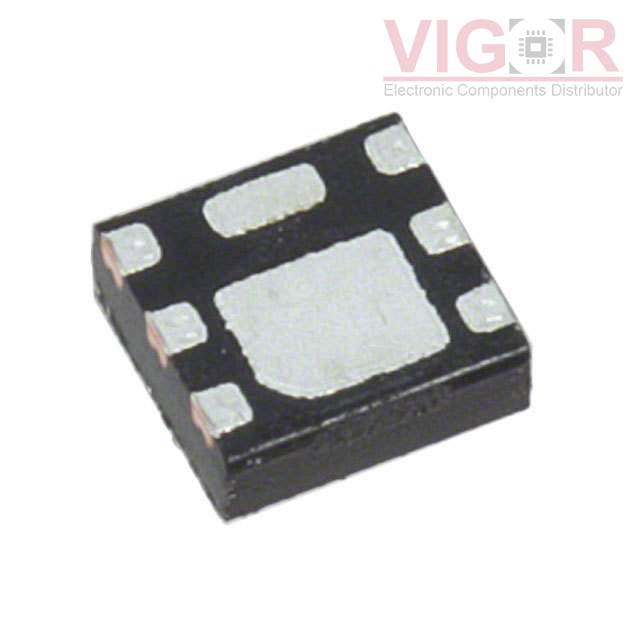

SSM6K513NU,LF

SSM6K513NU,LF

Image is for reference,
please contact us to get the real picture

Part No :

SSM6K513NU,LF

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
MOSFET N-CH 30V 15A 6UDFNB
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
SSM6K513NU,LF PDF
Availability
202 pieces
Unit Price
$0.48000

Current price of SSM6K513NU,LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SSM6K513NU,LF Specifications
Type Description
Series:U-MOSIX-H
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:15A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:8.9mOhm @ 4A, 10V
Vgs(th) (Max) @ Id:2.1V @ 100µA
Gate Charge (Qg) (Max) @ Vgs:7.5 nC @ 4.5 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1130 pF @ 15 V
FET Feature:-
Power Dissipation (Max):1.25W (Ta)
Operating Temperature:150°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:6-UDFNB (2x2)
Package / Case:6-WDFN Exposed Pad
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT CXDM1002N TR PBFREE

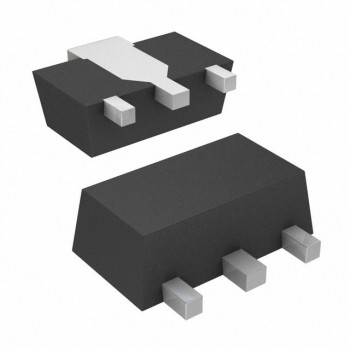

CXDM1002N TR PBFREE

MOSFET N-CH 100V 2A SOT-89
HOT IRF610

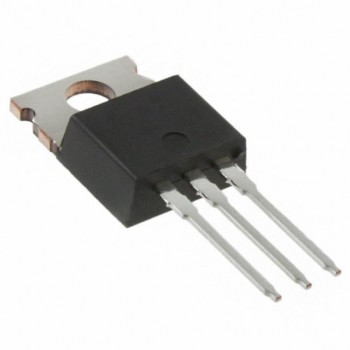

IRF610

3.3A 200V 1.500 OHM N-CHANNEL
HOT PMF63UNEX

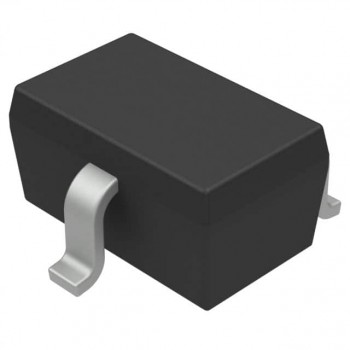

PMF63UNEX
