PMPB20XNEAX

PMPB20XNEAX

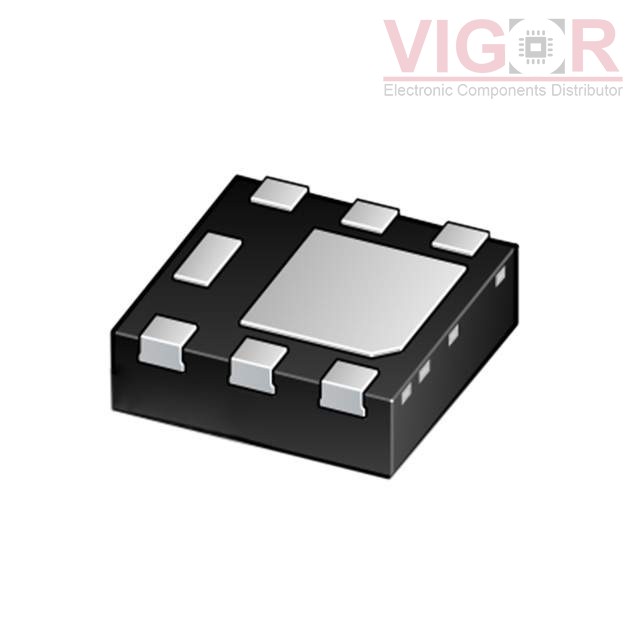

Image is for reference,
please contact us to get the real picture

Part No :

PMPB20XNEAX

Manufacturer
Nexperia
Description
MOSFET N-CH 20V 7.5A DFN2020MD-6
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
PMPB20XNEAX PDF
Availability
2890 pieces
Unit Price
$0.44000

Current price of PMPB20XNEAX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PMPB20XNEAX Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:7.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):2.5V, 4.5V
Rds On (Max) @ Id, Vgs:20mOhm @ 7.5A, 4.5V
Vgs(th) (Max) @ Id:1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:15 nC @ 4.5 V
Vgs (Max):±12V
Input Capacitance (Ciss) (Max) @ Vds:930 pF @ 10 V
FET Feature:-
Power Dissipation (Max):460mW (Ta), 12.5W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DFN2020MD-6
Package / Case:6-UDFN Exposed Pad
