RCJ120N20TL

RCJ120N20TL

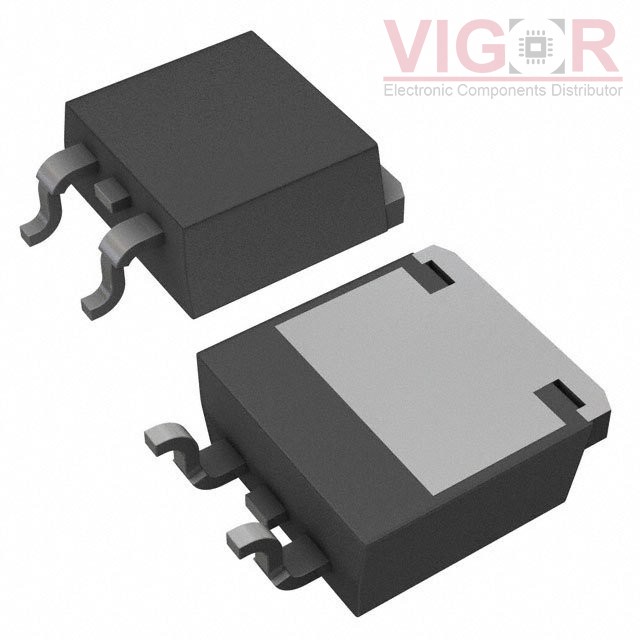

Image is for reference,
please contact us to get the real picture

Part No :

RCJ120N20TL

Manufacturer
ROHM Semiconductor
Description
MOSFET N-CH 200V 12A LPTS
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
RCJ120N20TL PDF
Availability
982 pieces
Unit Price
$1.18000

Current price of RCJ120N20TL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RCJ120N20TL Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):200 V
Current - Continuous Drain (Id) @ 25°C:12A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:325mOhm @ 6A, 10V
Vgs(th) (Max) @ Id:5.25V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:15 nC @ 10 V
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:740 pF @ 25 V
FET Feature:-
Power Dissipation (Max):1.56W (Ta), 40W (Tc)
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:LPTS
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
