IXFH70N20Q3

IXFH70N20Q3

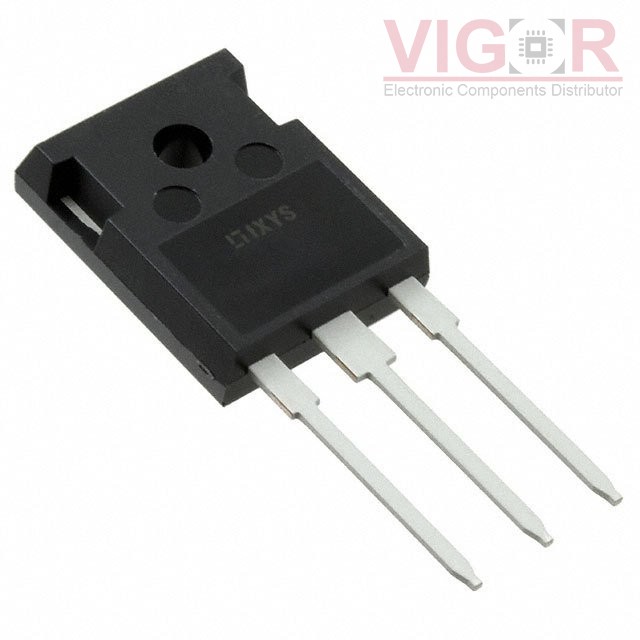

Image is for reference,
please contact us to get the real picture

Part No :

IXFH70N20Q3

Manufacturer
Wickmann / Littelfuse
Description
MOSFET N-CH 200V 70A TO247AD
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
IXFH70N20Q3 PDF
Availability
29 pieces
Unit Price
$11.90000

Current price of IXFH70N20Q3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IXFH70N20Q3 Specifications
Type Description
Series:HiPerFET™
Package:Tube
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):200 V
Current - Continuous Drain (Id) @ 25°C:70A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:40mOhm @ 35A, 10V
Vgs(th) (Max) @ Id:6.5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs:67 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:3150 pF @ 25 V
FET Feature:-
Power Dissipation (Max):690W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-247AD (IXFH)
Package / Case:TO-247-3
