MMBT7002K

MMBT7002K

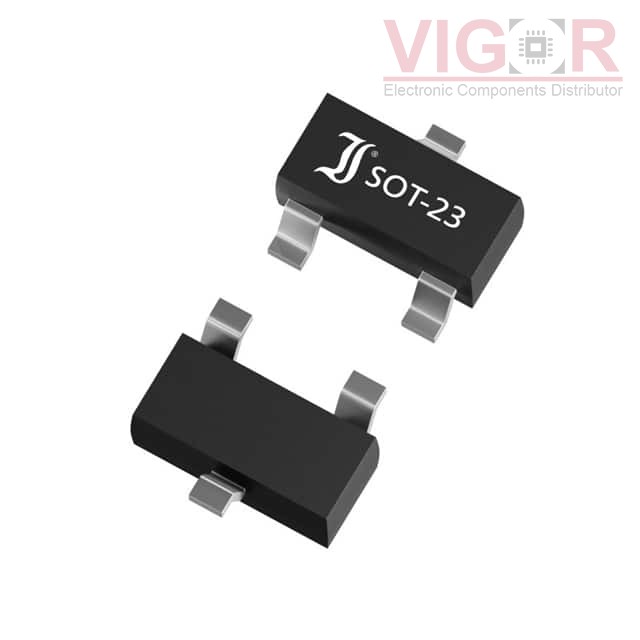

Image is for reference,
please contact us to get the real picture

Part No :

MMBT7002K

Manufacturer
Diotec Semiconductor
Description
MOSFET N-CH 60V 300MA SOT23-3
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 22 - Aug 26 2025
DataSheet
MMBT7002K PDF
Availability
27000 pieces
Unit Price
$0.02650

Current price of MMBT7002K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MMBT7002K Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:300mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:3Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id:2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:50 pF @ 25 V
FET Feature:-
Power Dissipation (Max):350mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-23-3 (TO-236)
Package / Case:TO-236-3, SC-59, SOT-23-3
