STL120N4LF6AG

STL120N4LF6AG

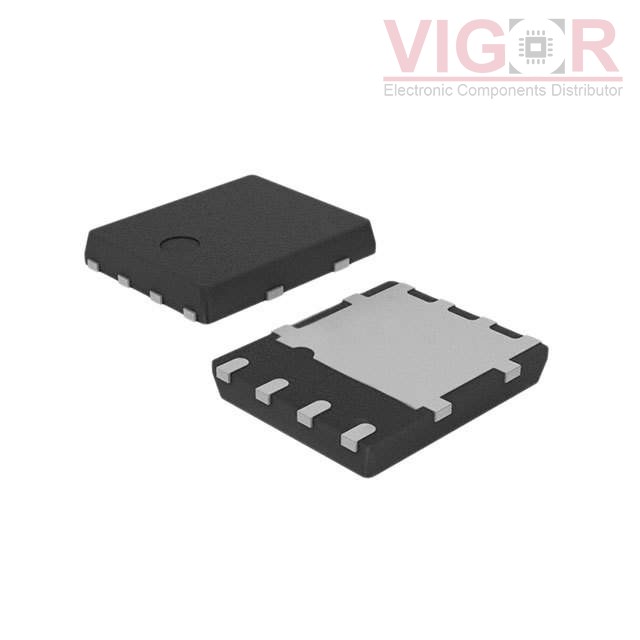

Image is for reference,
please contact us to get the real picture

Part No :

STL120N4LF6AG

Manufacturer
STMicroelectronics
Description
MOSFET N-CH 40V 120A POWERFLAT
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
STL120N4LF6AG PDF
Availability
0 pieces
Unit Price
$1.83000

Current price of STL120N4LF6AG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STL120N4LF6AG Specifications
Type Description
Series:Automotive, AEC-Q101, STripFET™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:120A (Tc)
Drive Voltage (Max Rds On, Min Rds On):5V, 10V
Rds On (Max) @ Id, Vgs:3.6mOhm @ 13A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:80 nC @ 10 V
Vgs (Max):40V
Input Capacitance (Ciss) (Max) @ Vds:4260 pF @ 25 V
FET Feature:-
Power Dissipation (Max):96W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PowerFlat™ (5x6)
Package / Case:8-PowerVDFN
