IPB039N10N3GATMA1

IPB039N10N3GATMA1

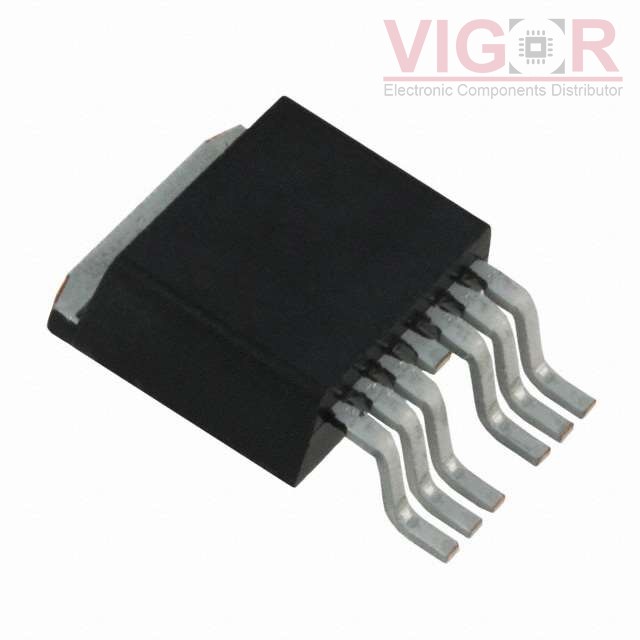

Image is for reference,
please contact us to get the real picture

Part No :

IPB039N10N3GATMA1

Manufacturer
IR (Infineon Technologies)
Description
MOSFET N-CH 100V 160A TO263-7
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
IPB039N10N3GATMA1 PDF
Availability
3468 pieces
Unit Price
$2.93000

Current price of IPB039N10N3GATMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IPB039N10N3GATMA1 Specifications
Type Description
Series:OptiMOS™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:160A (Tc)
Drive Voltage (Max Rds On, Min Rds On):6V, 10V
Rds On (Max) @ Id, Vgs:3.9mOhm @ 100A, 10V
Vgs(th) (Max) @ Id:3.5V @ 160µA
Gate Charge (Qg) (Max) @ Vgs:117 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:8410 pF @ 50 V
FET Feature:-
Power Dissipation (Max):214W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PG-TO263-7
Package / Case:TO-263-7, D²Pak (6 Leads + Tab), TO-263CB
