DMTH4004LPSQ-13

DMTH4004LPSQ-13

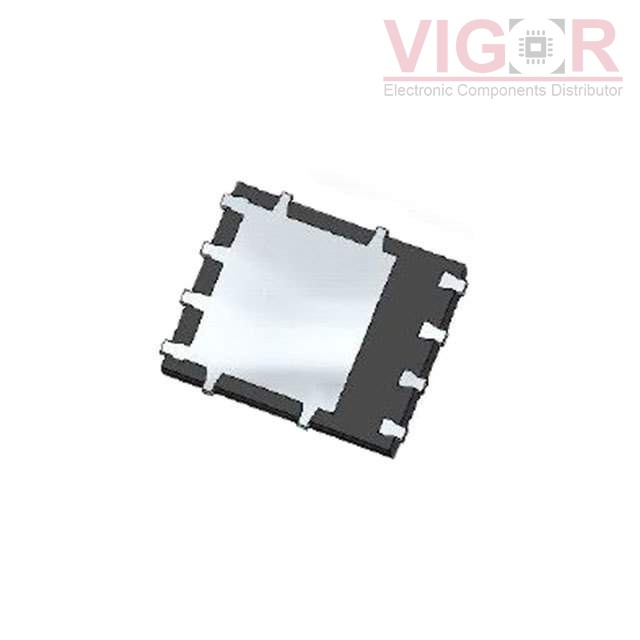

Image is for reference,
please contact us to get the real picture

Part No :

DMTH4004LPSQ-13

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MOSFET N-CH 40V 100A PWRDI5060-8
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
DMTH4004LPSQ-13 PDF
Availability
0 pieces
Unit Price
$0.63278

Current price of DMTH4004LPSQ-13 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DMTH4004LPSQ-13 Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:2.5mOhm @ 50A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:69.6 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:5220 pF @ 20 V
FET Feature:-
Power Dissipation (Max):2.83W (Ta), 125W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PowerDI5060-8
Package / Case:8-PowerTDFN
