Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of STL60N10F7 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | DeepGATE™, STripFET™ VII |
Package: | Tape & Reel (TR)Cut Tape (CT) |
Part Status: | Active |
FET Type: | N-Channel |
Technology: | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss): | 100 V |
Current - Continuous Drain (Id) @ 25°C: | 46A (Tc) |
Drive Voltage (Max Rds On, Min Rds On): | 10V |
Rds On (Max) @ Id, Vgs: | 18mOhm @ 6A, 10V |
Vgs(th) (Max) @ Id: | 4.5V @ 250µA |
Gate Charge (Qg) (Max) @ Vgs: | 25 nC @ 10 V |
Vgs (Max): | 20V |
Input Capacitance (Ciss) (Max) @ Vds: | 1640 pF @ 50 V |
FET Feature: | - |
Power Dissipation (Max): | 5W (Ta), 72W (Tc) |
Operating Temperature: | -55°C ~ 175°C (TJ) |
Mounting Type: | Surface Mount |

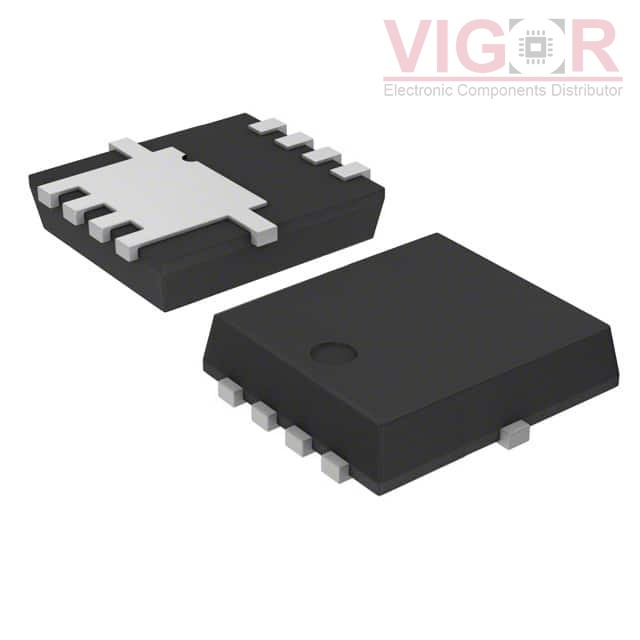

Supplier Device Package: | PowerFlat™ (5x6) |
Package / Case: | 8-PowerVDFN |
MOSFET N-CH 100V 46A POWERFLAT
