2SJ652-1E

2SJ652-1E

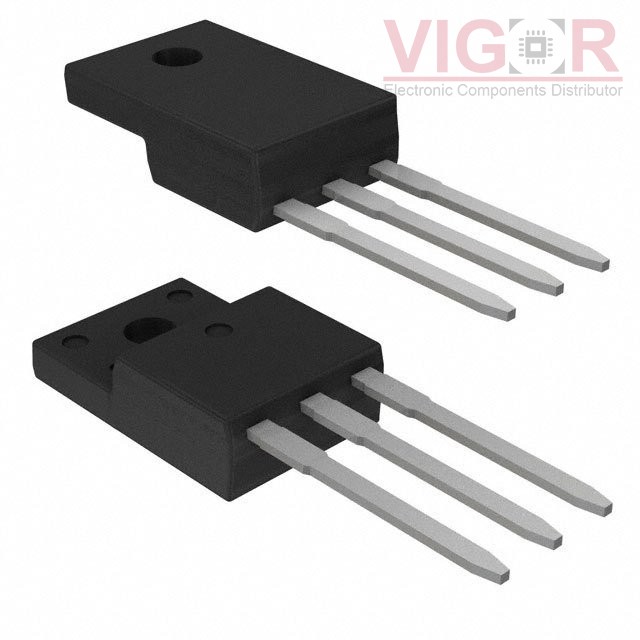

Image is for reference,
please contact us to get the real picture

Part No :

2SJ652-1E

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
MOSFET P-CH 60V 28A TO220F-3SG
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 14 - Aug 18 2025
DataSheet
2SJ652-1E PDF
Availability
0 pieces
Unit Price
$2.22000

Current price of 2SJ652-1E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2SJ652-1E Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:28A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4V, 10V
Rds On (Max) @ Id, Vgs:38mOhm @ 14A, 10V
Vgs(th) (Max) @ Id:-
Gate Charge (Qg) (Max) @ Vgs:80 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:4360 pF @ 20 V
FET Feature:-
Power Dissipation (Max):2W (Ta), 30W (Tc)
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220F-3SG
Package / Case:TO-220-3 Full Pack
