DMN22M5UFG-7

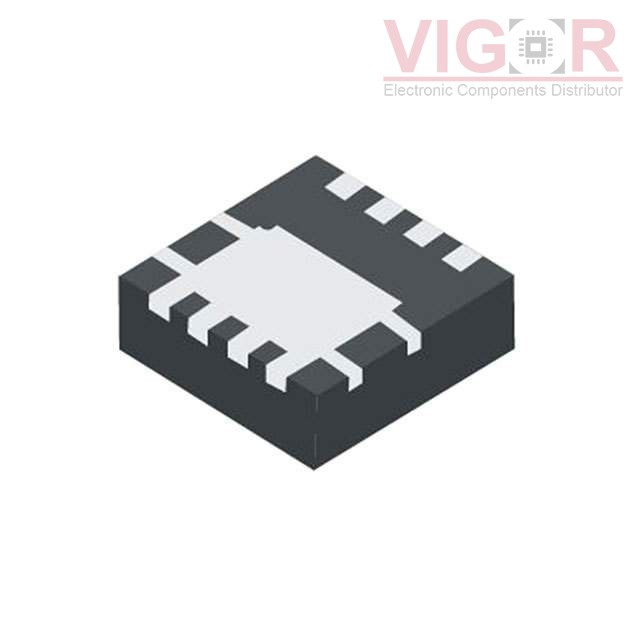

Image is for reference,
please contact us to get the real picture

Part No :: DMN22M5UFG-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MOSFET N-CH 20V 27A POWERDI3333

Catalog: Transistors - FETs, MOSFETs - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 20 - Aug 24 2025

DataSheet: DMN22M5UFG-7 PDF

Availability: 70 pieces

Unit Price: ~~$0.87000~~

Current price of DMN22M5UFG-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DMN22M5UFG-7 Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	27A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	2.5mOhm @ 13.5A, 4.5V
Vgs(th) (Max) @ Id:	1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	99 nC @ 10 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	-
FET Feature:	-
Power Dissipation (Max):	600mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PowerDI3333-8
Package / Case:	8-PowerVDFN

Please confirm the specifications of the products when ordering.
