IPW90R340C3XKSA1

IPW90R340C3XKSA1

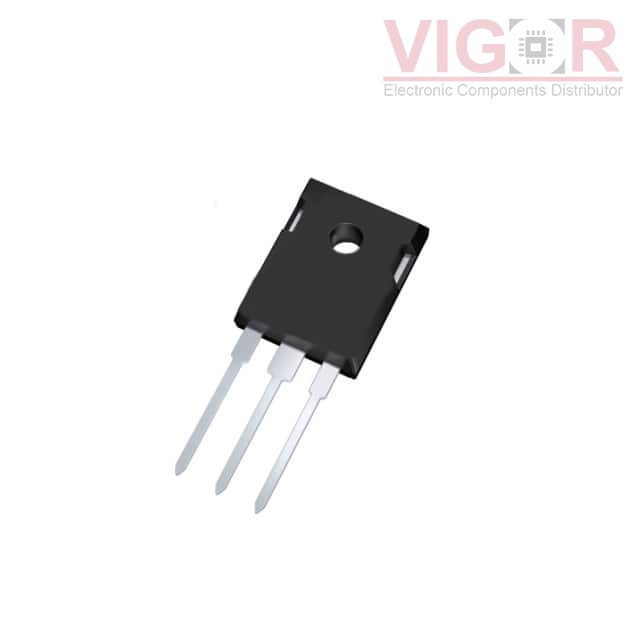

Image is for reference,
please contact us to get the real picture

Part No :

IPW90R340C3XKSA1

Manufacturer
IR (Infineon Technologies)
Description
MOSFET N-CH 900V 15A TO247-3
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
IPW90R340C3XKSA1 PDF
Availability
0 pieces
Unit Price
$4.25521

Current price of IPW90R340C3XKSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IPW90R340C3XKSA1 Specifications
Type Description
Series:CoolMOS™
Package:Tube
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):900 V
Current - Continuous Drain (Id) @ 25°C:15A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:340mOhm @ 9.2A, 10V
Vgs(th) (Max) @ Id:3.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:94 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:2400 pF @ 100 V
FET Feature:-
Power Dissipation (Max):208W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:PG-TO247-3
Package / Case:TO-247-3
