STB5NK50Z-1

STB5NK50Z-1

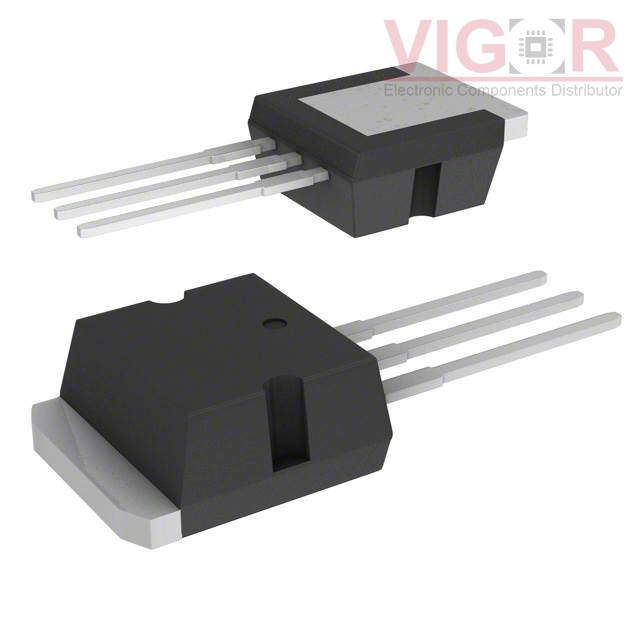

Image is for reference,
please contact us to get the real picture

Part No :

STB5NK50Z-1

Manufacturer
STMicroelectronics
Description
MOSFET N-CH 500V 4.4A I2PAK
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
STB5NK50Z-1 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of STB5NK50Z-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STB5NK50Z-1 Specifications
Type Description
Series:SuperMESH™
Package:Tube
Part Status:Obsolete
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):500 V
Current - Continuous Drain (Id) @ 25°C:4.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:1.5Ohm @ 2.2A, 10V
Vgs(th) (Max) @ Id:4.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs:28 nC @ 10 V
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:535 pF @ 25 V
FET Feature:-
Power Dissipation (Max):70W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:I2PAK (TO-262)
Package / Case:TO-262-3 Long Leads, I²Pak, TO-262AA
