IRF6706S2TRPBF

IRF6706S2TRPBF

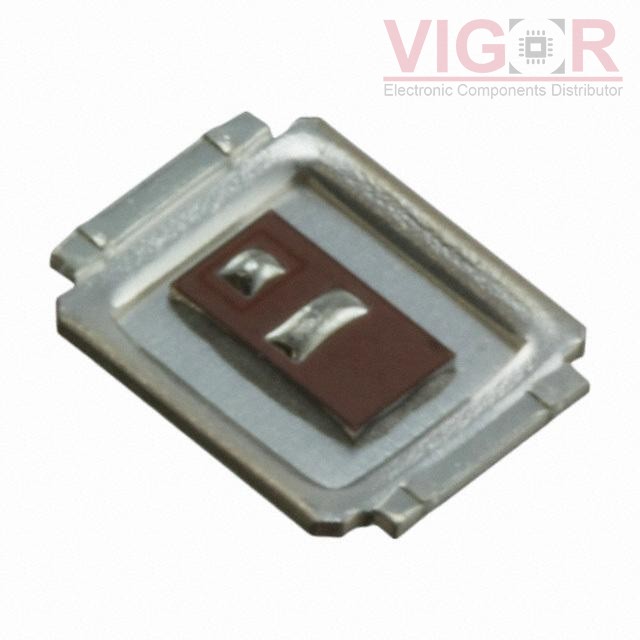

Image is for reference,
please contact us to get the real picture

Part No :

IRF6706S2TRPBF

Manufacturer
IR (Infineon Technologies)
Description
MOSFET N-CH 25V 17A DIRECTFET
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
IRF6706S2TRPBF PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of IRF6706S2TRPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IRF6706S2TRPBF Specifications
Type Description
Series:HEXFET®
Package:Tape & Reel (TR)
Part Status:Obsolete
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):25 V
Current - Continuous Drain (Id) @ 25°C:17A (Ta), 63A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:3.8mOhm @ 17A, 10V
Vgs(th) (Max) @ Id:2.35V @ 25µA
Gate Charge (Qg) (Max) @ Vgs:20 nC @ 4.5 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1810 pF @ 13 V
FET Feature:-
Power Dissipation (Max):1.8W (Ta), 26W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DIRECTFET S1
Package / Case:DirectFET™ Isometric S1
