STL20NM20N

STL20NM20N

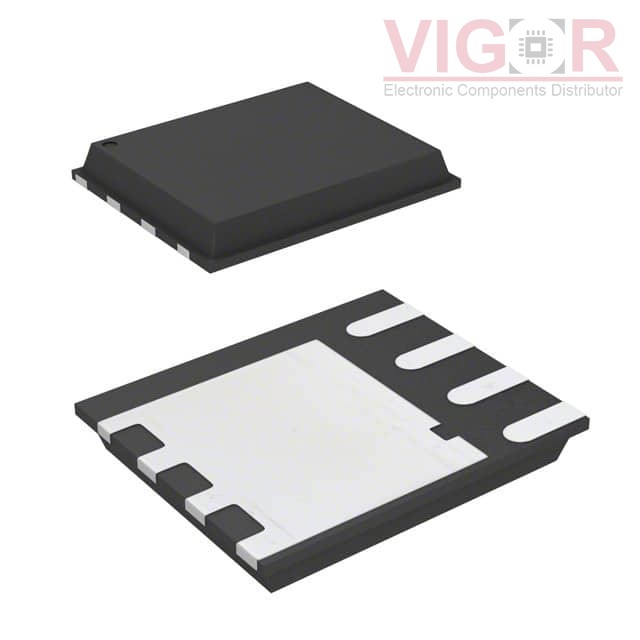

Image is for reference,
please contact us to get the real picture

Part No :

STL20NM20N

Manufacturer
STMicroelectronics
Description
MOSFET N-CH 200V 20A POWERFLAT
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 11 - Aug 15 2025
DataSheet
STL20NM20N PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of STL20NM20N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STL20NM20N Specifications
Type Description
Series:MDmesh™ II
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):200 V
Current - Continuous Drain (Id) @ 25°C:20A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:105mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:50 nC @ 10 V
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:800 pF @ 25 V
FET Feature:-
Power Dissipation (Max):80W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PowerFlat™ (5x6)
Package / Case:8-PowerVDFN
