IRLML2502GTRPBF

IRLML2502GTRPBF

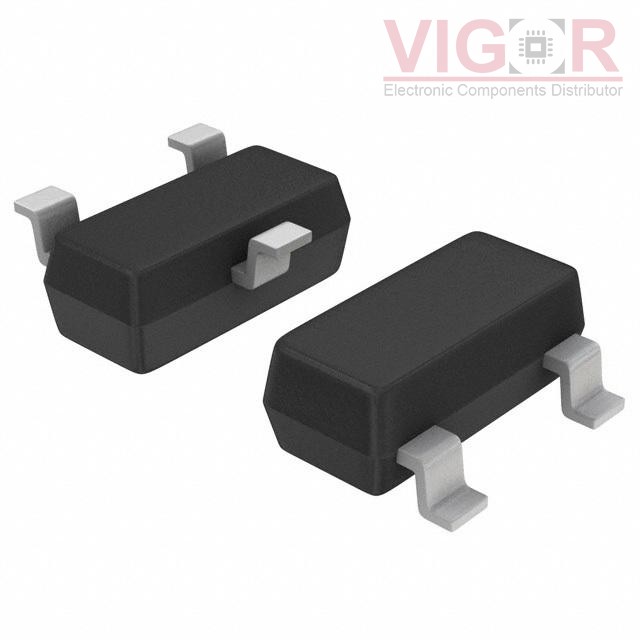

Image is for reference,
please contact us to get the real picture

Part No :

IRLML2502GTRPBF

Manufacturer
IR (Infineon Technologies)
Description
MOSFET N-CH 20V 4.2A SOT23
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
IRLML2502GTRPBF PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of IRLML2502GTRPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IRLML2502GTRPBF Specifications
Type Description
Series:HEXFET®
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Discontinued at Digi-Key
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:4.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On):2.5V, 4.5V
Rds On (Max) @ Id, Vgs:45mOhm @ 4.2A, 4.5V
Vgs(th) (Max) @ Id:1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:12 nC @ 5 V
Vgs (Max):±12V
Input Capacitance (Ciss) (Max) @ Vds:740 pF @ 15 V
FET Feature:-
Power Dissipation (Max):1.25W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:Micro3™/SOT-23
Package / Case:TO-236-3, SC-59, SOT-23-3
