IRFIZ48N

IRFIZ48N

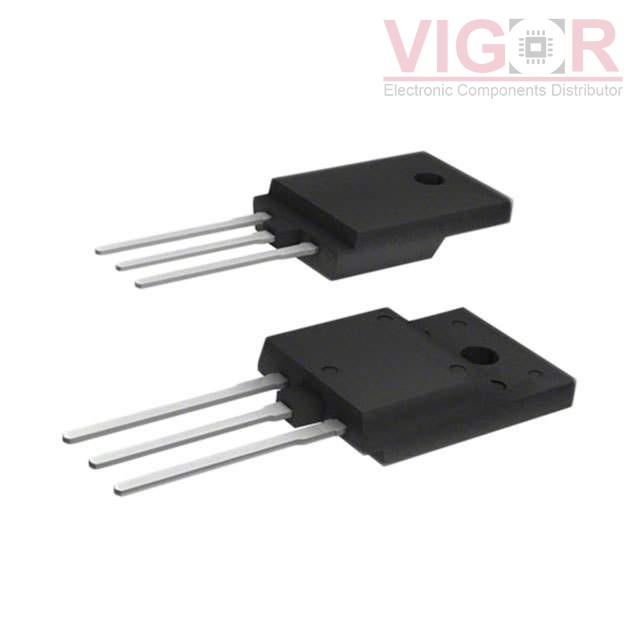

Image is for reference,
please contact us to get the real picture

Part No :

IRFIZ48N

Manufacturer
IR (Infineon Technologies)
Description
MOSFET N-CH 55V 36A TO220AB FP
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
IRFIZ48N PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of IRFIZ48N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IRFIZ48N Specifications
Type Description
Series:HEXFET®
Package:Tube
Part Status:Obsolete
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):55 V
Current - Continuous Drain (Id) @ 25°C:36A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:16mOhm @ 22A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:89 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1900 pF @ 25 V
FET Feature:-
Power Dissipation (Max):42W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220AB Full-Pak
Package / Case:TO-220-3 Full Pack
