AON7402_101

AON7402_101

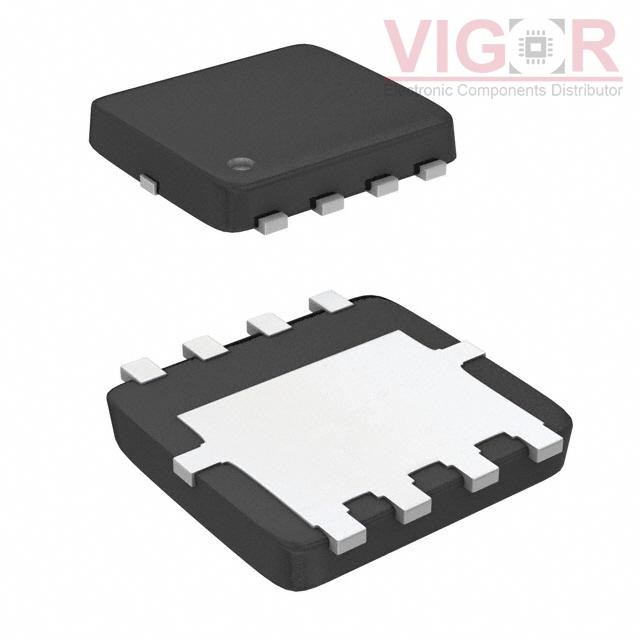

Image is for reference,
please contact us to get the real picture

Part No :

AON7402_101

Manufacturer
Alpha and Omega Semiconductor, Inc.
Description
MOSFET N-CH 30V 13.5A/39A 8DFN
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
AON7402_101 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of AON7402_101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AON7402_101 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:13.5A (Ta), 39A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:10mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:17.8 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:770 pF @ 15 V
FET Feature:-
Power Dissipation (Max):3.1W (Ta), 26W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-DFN-EP (3x3)
Package / Case:8-PowerVDFN
