NTD50N03R

NTD50N03R

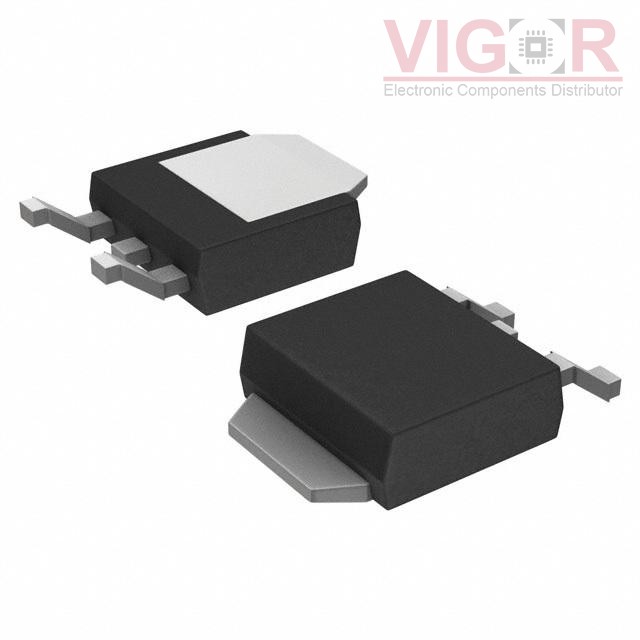

Image is for reference,
please contact us to get the real picture

Part No :

NTD50N03R

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
MOSFET N-CH 25V 7.8A/45A DPAK
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
NTD50N03R PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of NTD50N03R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTD50N03R Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):25 V
Current - Continuous Drain (Id) @ 25°C:7.8A (Ta), 45A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 11.5V
Rds On (Max) @ Id, Vgs:12mOhm @ 30A, 11.5V
Vgs(th) (Max) @ Id:2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:15 nC @ 11.5 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:750 pF @ 12 V
FET Feature:-
Power Dissipation (Max):1.5W (Ta), 50W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
