APTGT150DA120G

APTGT150DA120G

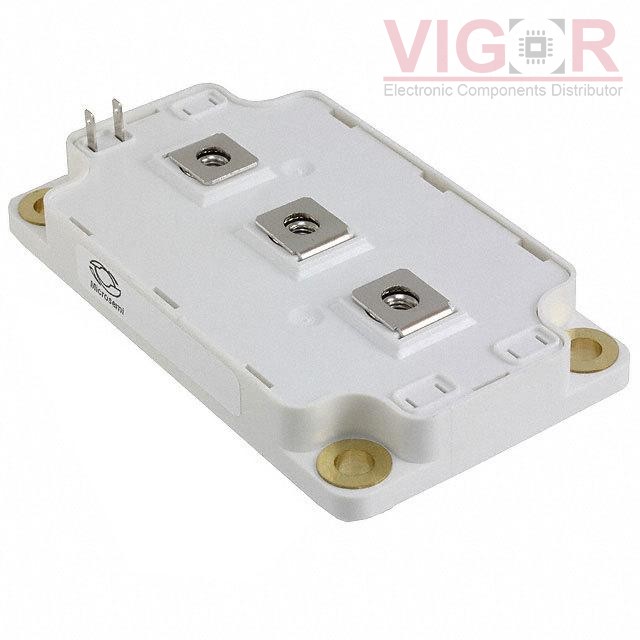

Image is for reference,
please contact us to get the real picture

Part No :

APTGT150DA120G

Manufacturer
Roving Networks / Microchip Technology
Description
IGBT MODULE 1200V 220A 690W SP6
Catalog
Transistors - IGBTs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
APTGT150DA120G PDF
Availability
0 pieces
Unit Price
$122.44000

Current price of APTGT150DA120G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

APTGT150DA120G Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
IGBT Type:Trench Field Stop
Configuration:Single
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):220 A
Power - Max:690 W
Vce(on) (Max) @ Vge, Ic:2.1V @ 15V, 150A
Current - Collector Cutoff (Max):350 µA
Input Capacitance (Cies) @ Vce:10.7 nF @ 25 V
Input:Standard
NTC Thermistor:No
Operating Temperature:-
Mounting Type:Chassis Mount
Package / Case:SP6
Supplier Device Package:SP6
