GSID150A120T2C1

GSID150A120T2C1

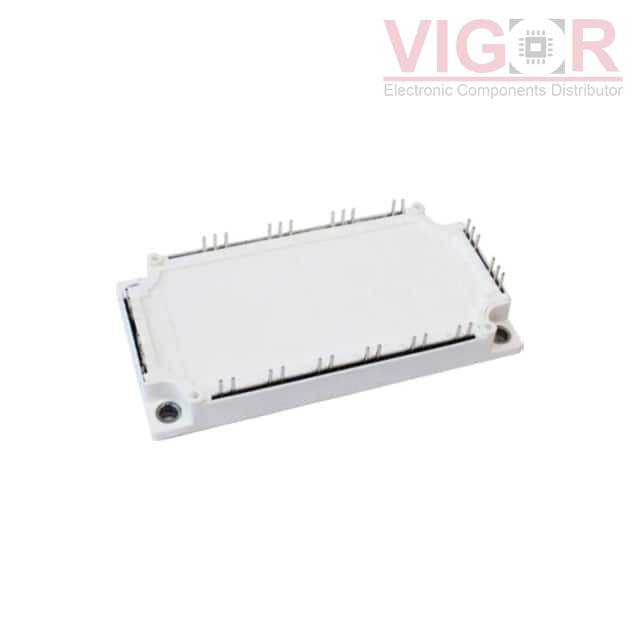

Image is for reference,
please contact us to get the real picture

Part No :

GSID150A120T2C1

Manufacturer
SemiQ
Description
IGBT MOD 1200V 285A 1087W
Catalog
Transistors - IGBTs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
GSID150A120T2C1 PDF
Availability
0 pieces
Unit Price
$154.40333

Current price of GSID150A120T2C1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

GSID150A120T2C1 Specifications
Type Description
Series:Amp+™
Package:Bulk
Part Status:Active
IGBT Type:-
Configuration:Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):285 A
Power - Max:1087 W
Vce(on) (Max) @ Vge, Ic:2.1V @ 15V, 150A
Current - Collector Cutoff (Max):1 mA
Input Capacitance (Cies) @ Vce:21.2 nF @ 25 V
Input:Three Phase Bridge Rectifier
NTC Thermistor:Yes
Operating Temperature:-40°C ~ 150°C
Mounting Type:Chassis Mount
Package / Case:Module
Supplier Device Package:Module
