FS20R06W1E3B11BOMA1

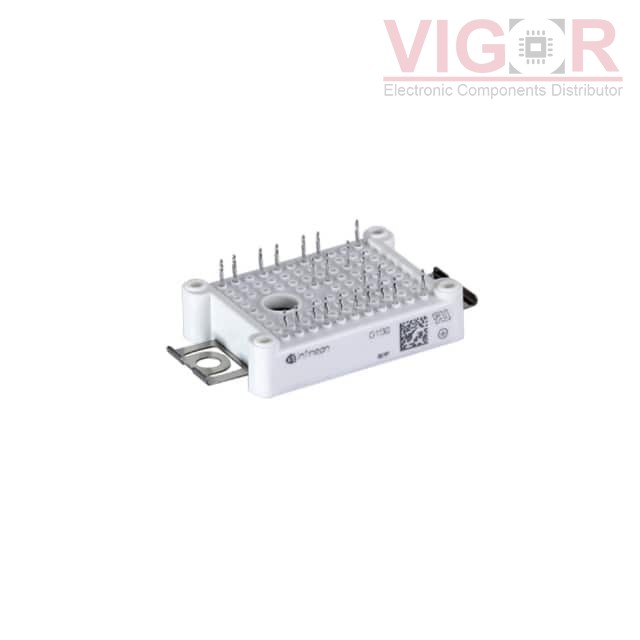

Image is for reference,
please contact us to get the real picture

Part No :: FS20R06W1E3B11BOMA1

Manufacturer: IR (Infineon Technologies)

Description: IGBT MODULE 600V 35A 135W

Catalog: Transistors - IGBTs - Modules

Shipped from: HK warehouse

Expected Shipping Date: Jul 06 - Jul 10 2025

DataSheet: FS20R06W1E3B11BOMA1 PDF

Availability: 0 pieces

Unit Price: ~~$26.02125~~

Current price of FS20R06W1E3B11BOMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FS20R06W1E3B11BOMA1 Specifications

Type	Description
Series:	EasyPACK™ 1B
Package:	Tray
Part Status:	Active
IGBT Type:	Trench Field Stop
Configuration:	Full Bridge
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	35 A
Power - Max:	135 W
Vce(on) (Max) @ Vge, Ic:	2V @ 15V, 20A
Current - Collector Cutoff (Max):	1 mA
Input Capacitance (Cies) @ Vce:	1.1 nF @ 25 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 150°C
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
