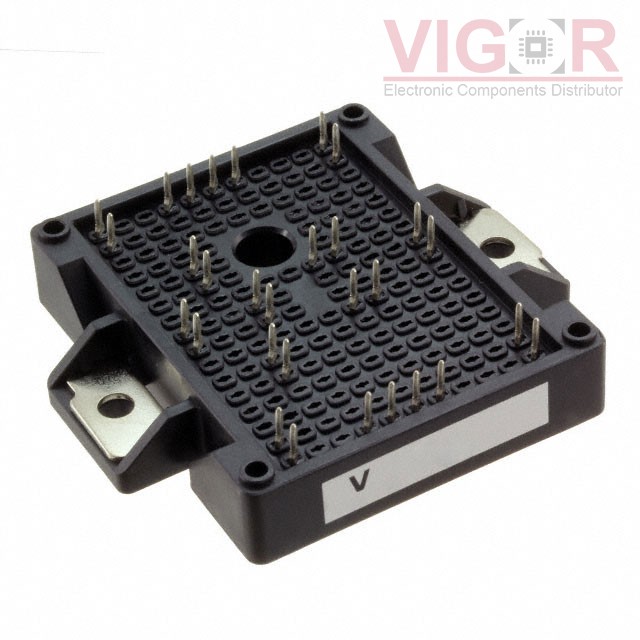

VS-ETL015Y120H

VS-ETL015Y120H

Image is for reference,
please contact us to get the real picture

Part No :

VS-ETL015Y120H

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
IGBT MOD 1200V 22A 89W EMIPAK-2B
Catalog
Transistors - IGBTs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
VS-ETL015Y120H PDF
Availability
0 pieces
Unit Price
$76.41536

Current price of VS-ETL015Y120H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VS-ETL015Y120H Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
IGBT Type:Trench
Configuration:-
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):22 A
Power - Max:89 W
Vce(on) (Max) @ Vge, Ic:3.03V @ 15V, 15A
Current - Collector Cutoff (Max):75 µA
Input Capacitance (Cies) @ Vce:1.07 nF @ 30 V
Input:Standard
NTC Thermistor:Yes
Operating Temperature:150°C (TJ)
Mounting Type:Chassis Mount
Package / Case:EMIPAK-2B
Supplier Device Package:EMIPAK-2B
