CPV363M4U

CPV363M4U

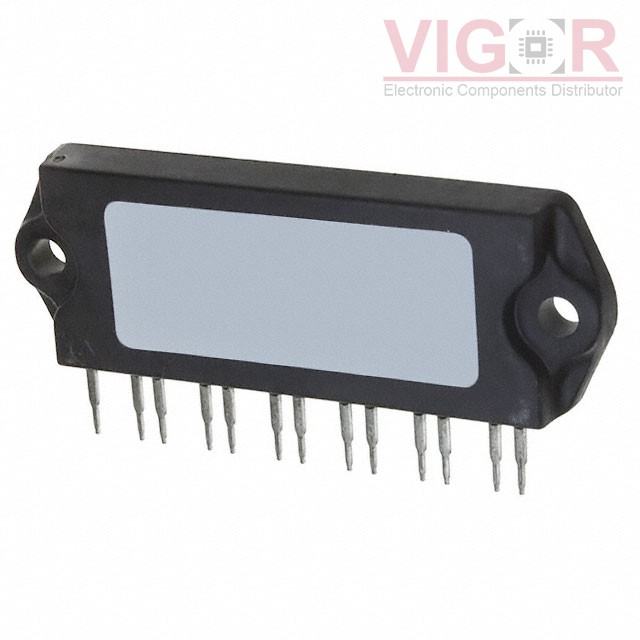

Image is for reference,
please contact us to get the real picture

Part No :

CPV363M4U

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
IGBT MODULE 600V 13A 36W IMS-2
Catalog
Transistors - IGBTs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
CPV363M4U PDF
Availability
0 pieces
Unit Price
$31.56688

Current price of CPV363M4U is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CPV363M4U Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
IGBT Type:-
Configuration:Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):13 A
Power - Max:36 W
Vce(on) (Max) @ Vge, Ic:2V @ 15V, 13A
Current - Collector Cutoff (Max):250 µA
Input Capacitance (Cies) @ Vce:1.1 nF @ 30 V
Input:Standard
NTC Thermistor:No
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:19-SIP (13 Leads), IMS-2
Supplier Device Package:IMS-2
