MMIX1X100N60B3H1

MMIX1X100N60B3H1

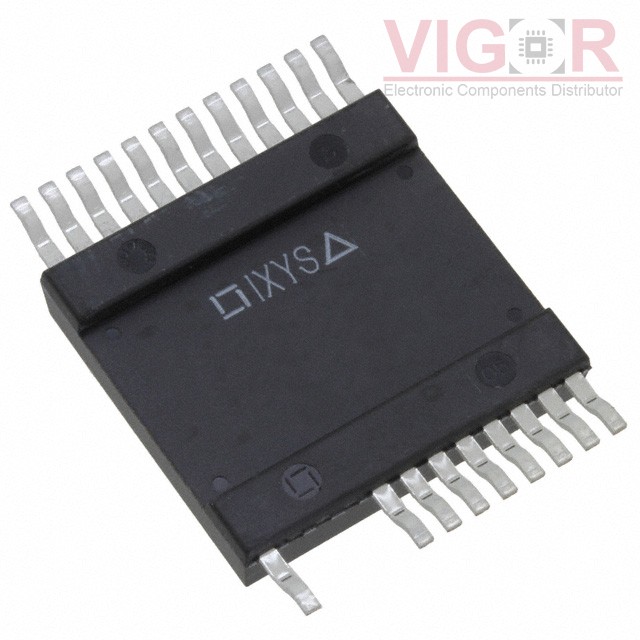

Image is for reference,
please contact us to get the real picture

Part No :

MMIX1X100N60B3H1

Manufacturer
Wickmann / Littelfuse
Description
IGBT 600V 145A 400W SMPD
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
MMIX1X100N60B3H1 PDF
Availability
0 pieces
Unit Price
$21.54350

Current price of MMIX1X100N60B3H1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MMIX1X100N60B3H1 Specifications
Type Description
Series:GenX3™, XPT™
Package:Tube
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):145 A
Current - Collector Pulsed (Icm):440 A
Vce(on) (Max) @ Vge, Ic:1.8V @ 15V, 70A
Power - Max:400 W
Switching Energy:1.9mJ (on), 2mJ (off)
Input Type:Standard
Gate Charge:143 nC
Td (on/off) @ 25°C:30ns/120ns
Test Condition:360V, 70A, 2Ohm, 15V
Reverse Recovery Time (trr):140 ns
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:24-PowerSMD, 21 Leads
Supplier Device Package:24-SMPD
