APT75GN60BDQ2G

APT75GN60BDQ2G

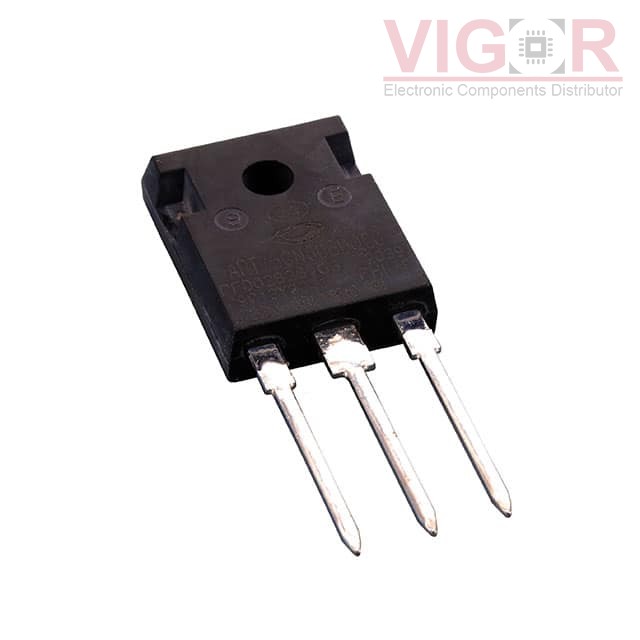

Image is for reference,
please contact us to get the real picture

Part No :

APT75GN60BDQ2G

Manufacturer
Roving Networks / Microchip Technology
Description
IGBT FIELDSTOP SINGLE 600V 75A T
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
APT75GN60BDQ2G PDF
Availability
180 pieces
Unit Price
$7.51000

Current price of APT75GN60BDQ2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

APT75GN60BDQ2G Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):155 A
Current - Collector Pulsed (Icm):225 A
Vce(on) (Max) @ Vge, Ic:1.85V @ 15V, 75A
Power - Max:536 W
Switching Energy:2.5mJ (on), 2.14mJ (off)
Input Type:Standard
Gate Charge:485 nC
Td (on/off) @ 25°C:47ns/385ns
Test Condition:400V, 75A, 1Ohm, 15V
Reverse Recovery Time (trr):25 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247
