IXYH55N120A4

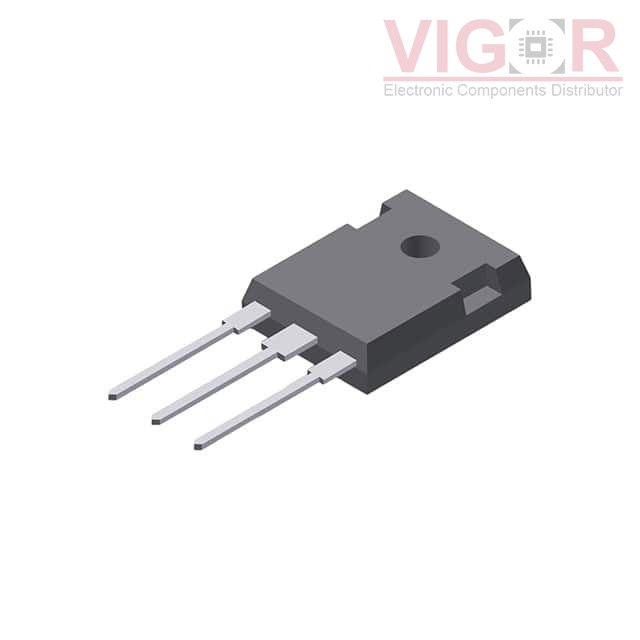

Image is for reference,
please contact us to get the real picture

Part No :: IXYH55N120A4

Manufacturer: Wickmann / Littelfuse

Description: IGBT GENX4 1200V 55A TO247

Catalog: Transistors - IGBTs - Single

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: IXYH55N120A4 PDF

Availability: 37 pieces

Unit Price: ~~$11.71000~~

Current price of IXYH55N120A4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IXYH55N120A4 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
IGBT Type:	PT
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	175 A
Current - Collector Pulsed (Icm):	350 A
Vce(on) (Max) @ Vge, Ic:	1.8V @ 15V, 55A
Power - Max:	650 W
Switching Energy:	2.3mJ (on), 5.3mJ (off)
Input Type:	Standard
Gate Charge:	110 nC
Td (on/off) @ 25°C:	23ns/300ns
Test Condition:	600V, 40A, 5Ohm, 15V
Reverse Recovery Time (trr):	35 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247 (IXYH)

Please confirm the specifications of the products when ordering.
