IXBX50N360HV

IXBX50N360HV

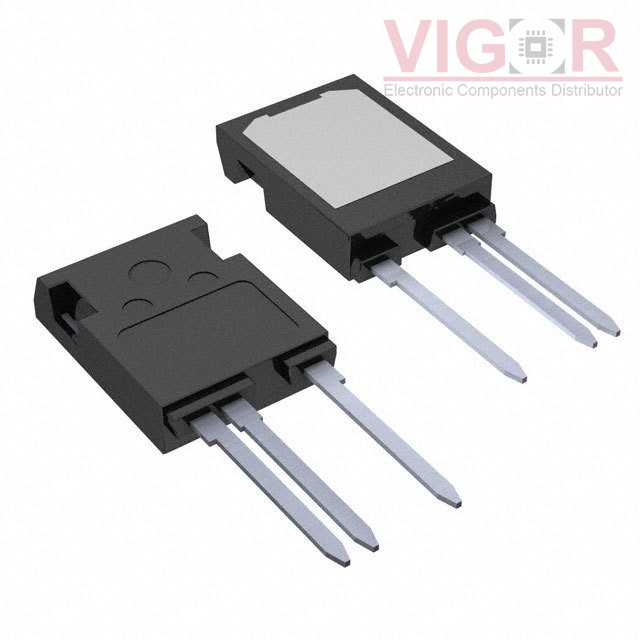

Image is for reference,
please contact us to get the real picture

Part No :

IXBX50N360HV

Manufacturer
Wickmann / Littelfuse
Description
IGBT 3600V 125A 660W TO-247PLUS
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
IXBX50N360HV PDF
Availability
234 pieces
Unit Price
$57.33000

Current price of IXBX50N360HV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IXBX50N360HV Specifications
Type Description
Series:BIMOSFET™
Package:Tube
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):3600 V
Current - Collector (Ic) (Max):125 A
Current - Collector Pulsed (Icm):420 A
Vce(on) (Max) @ Vge, Ic:2.9V @ 15V, 50A
Power - Max:660 W
Switching Energy:-
Input Type:Standard
Gate Charge:210 nC
Td (on/off) @ 25°C:46ns/205ns
Test Condition:960V, 50A, 5Ohm, 15V
Reverse Recovery Time (trr):1.7 µs
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3 Variant
Supplier Device Package:TO-247PLUS-HV
