AOK20B120E2

AOK20B120E2

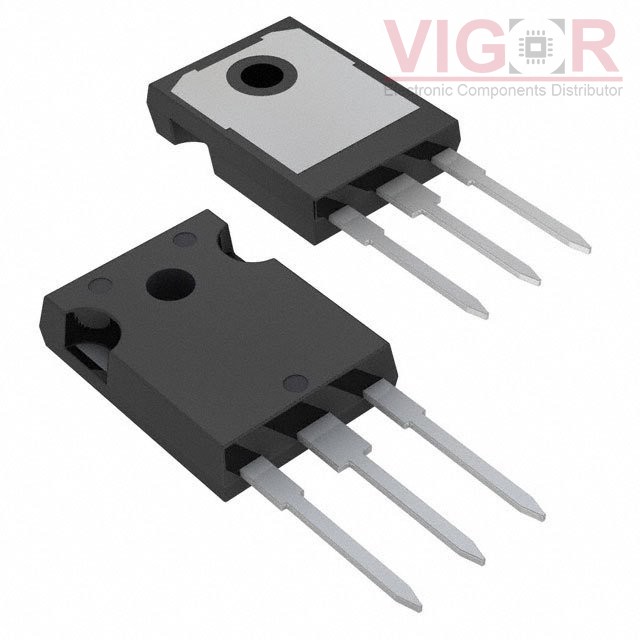

Image is for reference,
please contact us to get the real picture

Part No :

AOK20B120E2

Manufacturer
Alpha and Omega Semiconductor, Inc.
Description
IGBT 1200V 20A TO-247
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
AOK20B120E2 PDF
Availability
0 pieces
Unit Price
$2.78463

Current price of AOK20B120E2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AOK20B120E2 Specifications
Type Description
Series:Alpha IGBT™
Package:Tube
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):40 A
Current - Collector Pulsed (Icm):80 A
Vce(on) (Max) @ Vge, Ic:2.2V @ 15V, 20A
Power - Max:250 W
Switching Energy:820µJ (off)
Input Type:Standard
Gate Charge:53.5 nC
Td (on/off) @ 25°C:-/123ns
Test Condition:600V, 20A, 15Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247
