IXBT16N170AHV

IXBT16N170AHV

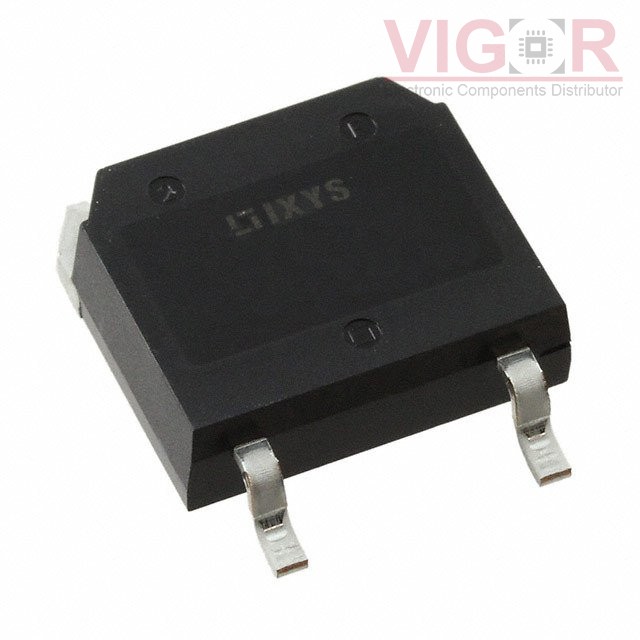

Image is for reference,
please contact us to get the real picture

Part No :

IXBT16N170AHV

Manufacturer
Wickmann / Littelfuse
Description
IGBT
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 20 - Aug 24 2025
DataSheet
IXBT16N170AHV PDF
Availability
870 pieces
Unit Price
$12.83467

Current price of IXBT16N170AHV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IXBT16N170AHV Specifications
Type Description
Series:BIMOSFET™
Package:Tube
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):1700 V
Current - Collector (Ic) (Max):16 A
Current - Collector Pulsed (Icm):40 A
Vce(on) (Max) @ Vge, Ic:6V @ 15V, 10A
Power - Max:150 W
Switching Energy:2.5mJ (off)
Input Type:Standard
Gate Charge:65 nC
Td (on/off) @ 25°C:15ns/250ns
Test Condition:1360V, 10A, 10Ohm, 15V
Reverse Recovery Time (trr):25 ns
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package:TO-268HV
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
