IXYT55N120A4HV

IXYT55N120A4HV

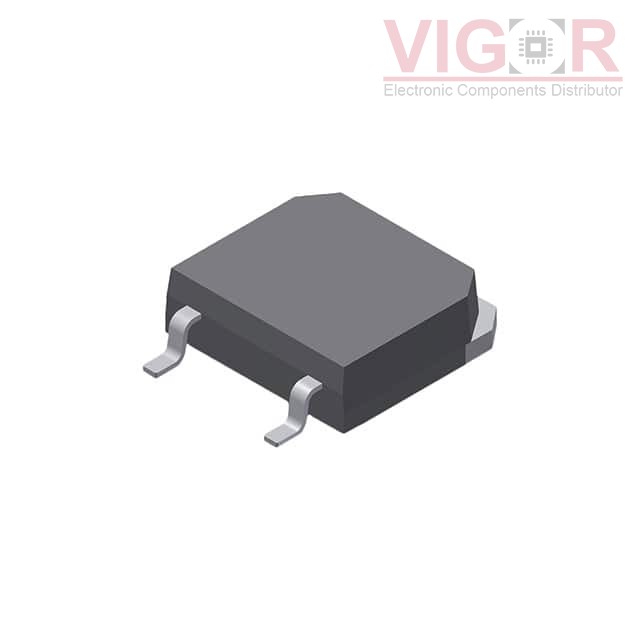

Image is for reference,
please contact us to get the real picture

Part No :

IXYT55N120A4HV

Manufacturer
Wickmann / Littelfuse
Description
IGBT GENX4 1200V 55A TO268HV
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
IXYT55N120A4HV PDF
Availability
30 pieces
Unit Price
$11.60000

Current price of IXYT55N120A4HV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IXYT55N120A4HV Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:PT
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):175 A
Current - Collector Pulsed (Icm):350 A
Vce(on) (Max) @ Vge, Ic:1.8V @ 15V, 55A
Power - Max:650 W
Switching Energy:2.3mJ (on), 5.3mJ (off)
Input Type:Standard
Gate Charge:110 nC
Td (on/off) @ 25°C:23ns/300ns
Test Condition:600V, 40A, 5Ohm, 15V
Reverse Recovery Time (trr):35 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package:TO-268HV
