IXXR110N65B4H1

IXXR110N65B4H1

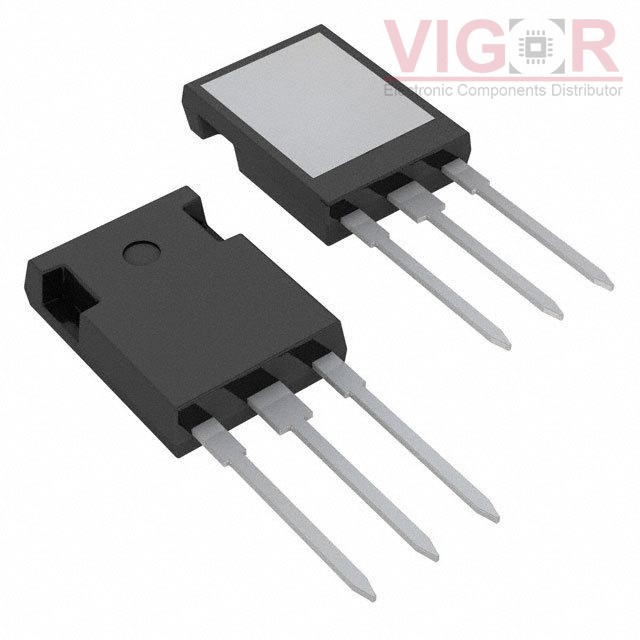

Image is for reference,
please contact us to get the real picture

Part No :

IXXR110N65B4H1

Manufacturer
Wickmann / Littelfuse
Description
IGBT 650V 150A 455W ISOPLUS247
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
IXXR110N65B4H1 PDF
Availability
0 pieces
Unit Price
$12.25233

Current price of IXXR110N65B4H1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IXXR110N65B4H1 Specifications
Type Description
Series:GenX4™, XPT™
Package:Tube
Part Status:Active
IGBT Type:PT
Voltage - Collector Emitter Breakdown (Max):650 V
Current - Collector (Ic) (Max):150 A
Current - Collector Pulsed (Icm):460 A
Vce(on) (Max) @ Vge, Ic:2.2V @ 15V, 110A
Power - Max:455 W
Switching Energy:2.2mJ (on), 1.05mJ (off)
Input Type:Standard
Gate Charge:183 nC
Td (on/off) @ 25°C:38ns/156ns
Test Condition:400V, 55A, 2Ohm, 15V
Reverse Recovery Time (trr):100 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:ISOPLUS247™
