STGY40NC60VD

STGY40NC60VD

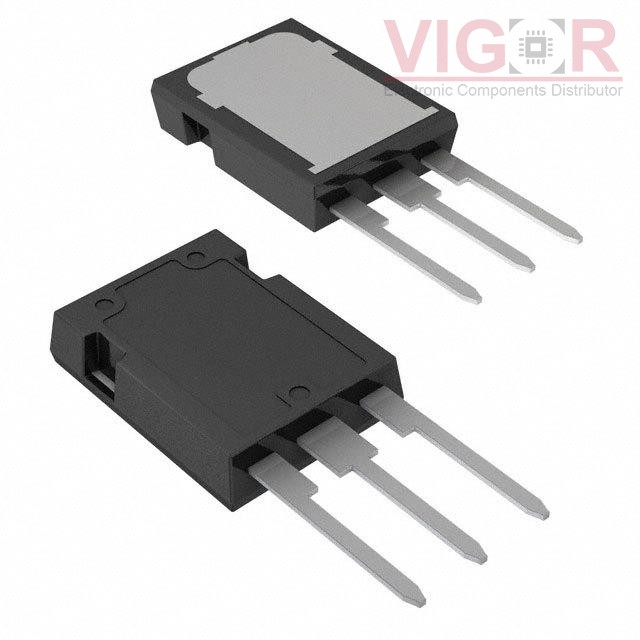

Image is for reference,
please contact us to get the real picture

Part No :

STGY40NC60VD

Manufacturer
STMicroelectronics
Description
IGBT 600V 80A 260W MAX247
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
STGY40NC60VD PDF
Availability
283 pieces
Unit Price
$11.66000

Current price of STGY40NC60VD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGY40NC60VD Specifications
Type Description
Series:PowerMESH™
Package:Tube
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):80 A
Current - Collector Pulsed (Icm):-
Vce(on) (Max) @ Vge, Ic:2.5V @ 15V, 40A
Power - Max:260 W
Switching Energy:330µJ (on), 720µJ (off)
Input Type:Standard
Gate Charge:214 nC
Td (on/off) @ 25°C:43ns/140ns
Test Condition:390V, 40A, 3.3Ohm, 15V
Reverse Recovery Time (trr):44 ns
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:MAX247™
