RGW80TK65DGVC11

RGW80TK65DGVC11

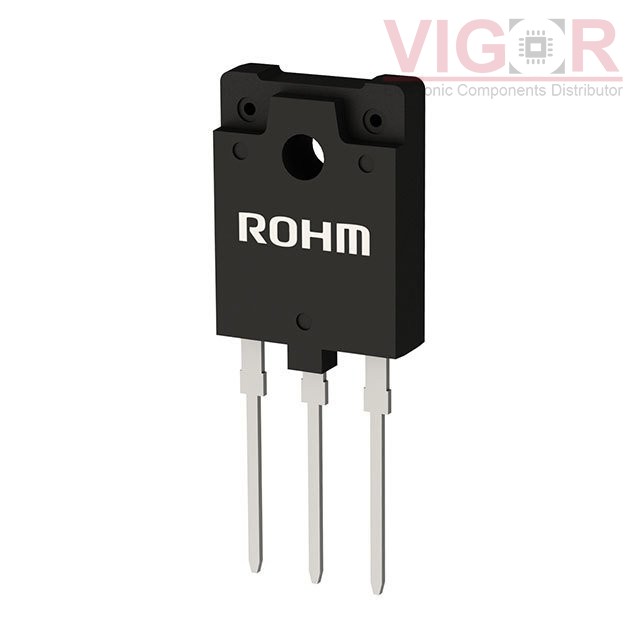

Image is for reference,
please contact us to get the real picture

Part No :

RGW80TK65DGVC11

Manufacturer
ROHM Semiconductor
Description
650V 40A FIELD STOP TRENCH IGBT
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
RGW80TK65DGVC11 PDF
Availability
440 pieces
Unit Price
$6.10000

Current price of RGW80TK65DGVC11 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RGW80TK65DGVC11 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):650 V
Current - Collector (Ic) (Max):39 A
Current - Collector Pulsed (Icm):160 A
Vce(on) (Max) @ Vge, Ic:1.9V @ 15V, 40A
Power - Max:81 W
Switching Energy:760µJ (on), 720µJ (off)
Input Type:Standard
Gate Charge:110 nC
Td (on/off) @ 25°C:44ns/143ns
Test Condition:400V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr):92 ns
Operating Temperature:-40°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3PFM, SC-93-3
Supplier Device Package:TO-3PFM
