STGYA120M65DF2

STGYA120M65DF2

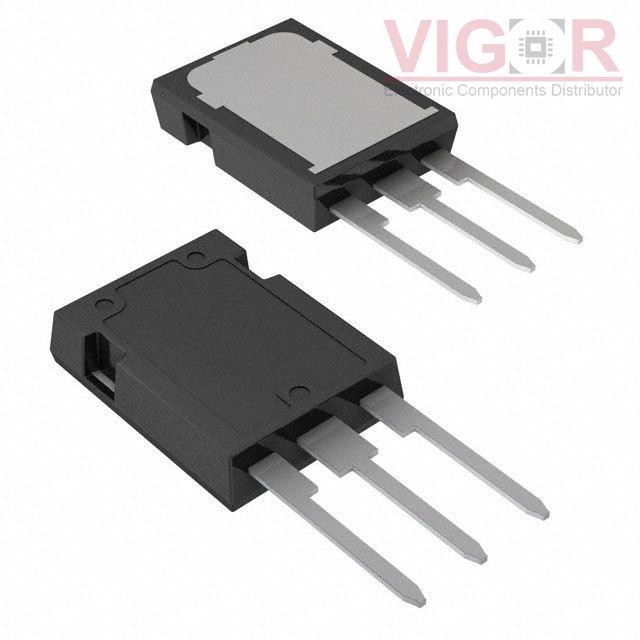

Image is for reference,
please contact us to get the real picture

Part No :

STGYA120M65DF2

Manufacturer
STMicroelectronics
Description
TRENCH GATE FIELD-STOP IGBT, M S
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
STGYA120M65DF2 PDF
Availability
587 pieces
Unit Price
$11.69000

Current price of STGYA120M65DF2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGYA120M65DF2 Specifications
Type Description
Series:M
Package:Tube
Part Status:Active
IGBT Type:NPT, Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):650 V
Current - Collector (Ic) (Max):160 A
Current - Collector Pulsed (Icm):360 A
Vce(on) (Max) @ Vge, Ic:1.95V @ 15V, 120A
Power - Max:625 W
Switching Energy:1.8mJ (on), 4.41mJ (off)
Input Type:Standard
Gate Charge:420 nC
Td (on/off) @ 25°C:66ns/185ns
Test Condition:400V, 120A, 4.7Ohm, 15V
Reverse Recovery Time (trr):202 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3 Exposed Pad
Supplier Device Package:MAX247™
