RJH60D7DPK-00#T0

RJH60D7DPK-00#T0

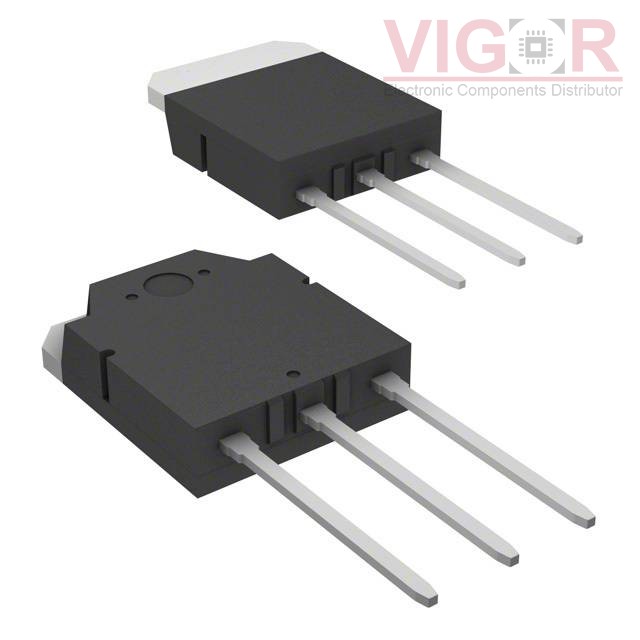

Image is for reference,
please contact us to get the real picture

Part No :

RJH60D7DPK-00#T0

Manufacturer
Renesas Electronics America
Description
IGBT 600V 90A 300W TO3P
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
RJH60D7DPK-00#T0 PDF
Availability
8 pieces
Unit Price
$5.93000

Current price of RJH60D7DPK-00#T0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RJH60D7DPK-00#T0 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:Trench
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):90 A
Current - Collector Pulsed (Icm):-
Vce(on) (Max) @ Vge, Ic:2.2V @ 15V, 50A
Power - Max:300 W
Switching Energy:1.1mJ (on), 600µJ (off)
Input Type:Standard
Gate Charge:130 nC
Td (on/off) @ 25°C:60ns/190ns
Test Condition:300V, 50A, 5Ohm, 15V
Reverse Recovery Time (trr):100 ns
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3P-3, SC-65-3
Supplier Device Package:TO-3P
