RGPZ10BM40FHTL

RGPZ10BM40FHTL

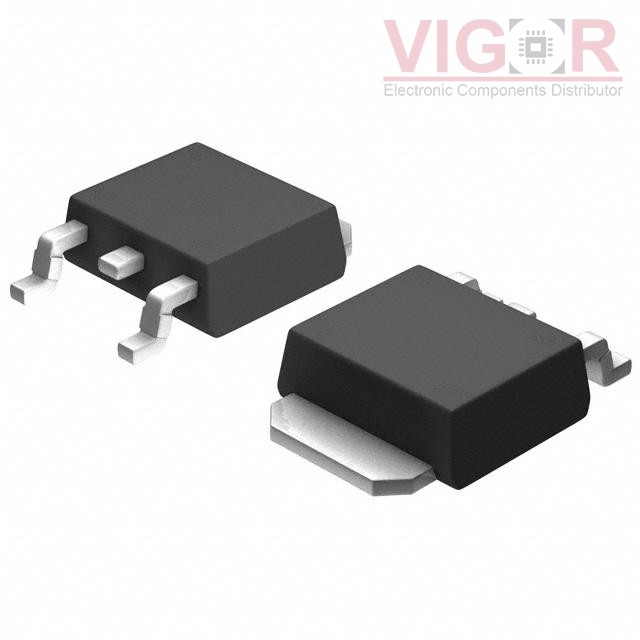

Image is for reference,
please contact us to get the real picture

Part No :

RGPZ10BM40FHTL

Manufacturer
ROHM Semiconductor
Description
IGBT
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
RGPZ10BM40FHTL PDF
Availability
4947 pieces
Unit Price
$1.85000

Current price of RGPZ10BM40FHTL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RGPZ10BM40FHTL Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):460 V
Current - Collector (Ic) (Max):20 A
Current - Collector Pulsed (Icm):-
Vce(on) (Max) @ Vge, Ic:2.0V @ 5V, 10A
Power - Max:107 W
Switching Energy:-
Input Type:Standard
Gate Charge:14 nC
Td (on/off) @ 25°C:500ns/4µs
Test Condition:300V, 8A, 100Ohm, 5V
Reverse Recovery Time (trr):-
Operating Temperature:-40°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:TO-252
