STGFW30V60F

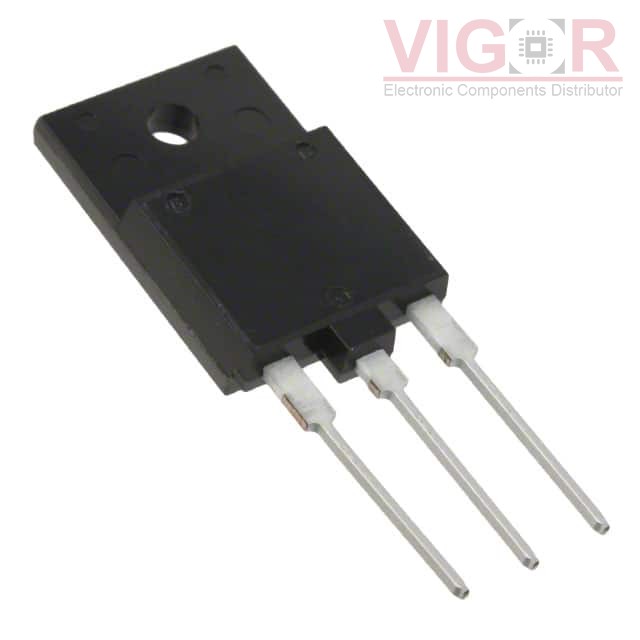

Image is for reference,
please contact us to get the real picture

Part No :: STGFW30V60F

Manufacturer: STMicroelectronics

Description: IGBT 600V 60A 58W TO3PF

Catalog: Transistors - IGBTs - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 13 - Jul 17 2025

DataSheet: STGFW30V60F PDF

Availability: 0 pieces

Unit Price: ~~$1.40980~~

Current price of STGFW30V60F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGFW30V60F Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	60 A
Current - Collector Pulsed (Icm):	120 A
Vce(on) (Max) @ Vge, Ic:	2.3V @ 15V, 30A
Power - Max:	58 W
Switching Energy:	383µJ (on), 233µJ (off)
Input Type:	Standard
Gate Charge:	163 nC
Td (on/off) @ 25°C:	45ns/189ns
Test Condition:	400V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-3P-3 Full Pack
Supplier Device Package:	TO-3PF

Please confirm the specifications of the products when ordering.
