IKQ120N60TXKSA1

IKQ120N60TXKSA1

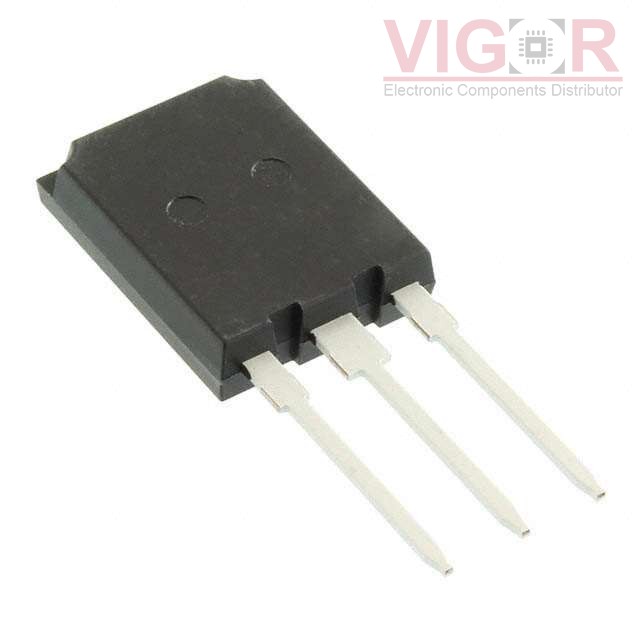

Image is for reference,
please contact us to get the real picture

Part No :

IKQ120N60TXKSA1

Manufacturer
IR (Infineon Technologies)
Description
IGBT 600V 160A TO247-3-46
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
IKQ120N60TXKSA1 PDF
Availability
2247 pieces
Unit Price
$13.62000

Current price of IKQ120N60TXKSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IKQ120N60TXKSA1 Specifications
Type Description
Series:TrenchStop™
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):160 A
Current - Collector Pulsed (Icm):480 A
Vce(on) (Max) @ Vge, Ic:2V @ 15V, 120A
Power - Max:833 W
Switching Energy:6.2mJ (on), 5.9mJ (off)
Input Type:Standard
Gate Charge:703 nC
Td (on/off) @ 25°C:50ns/565ns
Test Condition:400V, 120A, 3Ohm, 15V
Reverse Recovery Time (trr):241 ns
Operating Temperature:-40°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:PG-TO247-3-46
