IXYH85N120A4

IXYH85N120A4

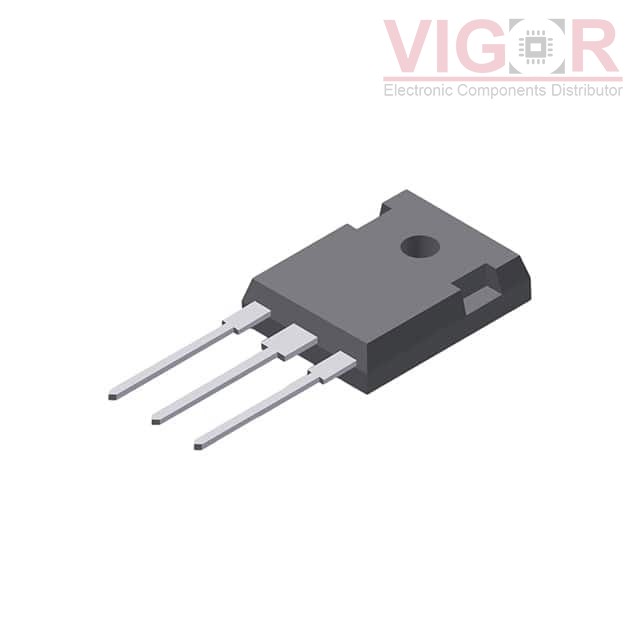

Image is for reference,
please contact us to get the real picture

Part No :

IXYH85N120A4

Manufacturer
Wickmann / Littelfuse
Description
IGBT GENX4 1200V 85A TO247
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
IXYH85N120A4 PDF
Availability
56 pieces
Unit Price
$15.72000

Current price of IXYH85N120A4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IXYH85N120A4 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:PT
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):300 A
Current - Collector Pulsed (Icm):520 A
Vce(on) (Max) @ Vge, Ic:1.8V @ 15V, 85A
Power - Max:1150 W
Switching Energy:4.9mJ (on), 8.3mJ (off)
Input Type:Standard
Gate Charge:200 nC
Td (on/off) @ 25°C:40ns/400ns
Test Condition:600V, 60A, 5Ohm, 15V
Reverse Recovery Time (trr):40 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247 (IXYH)
