RJP60F5DPK-01#T0

RJP60F5DPK-01#T0

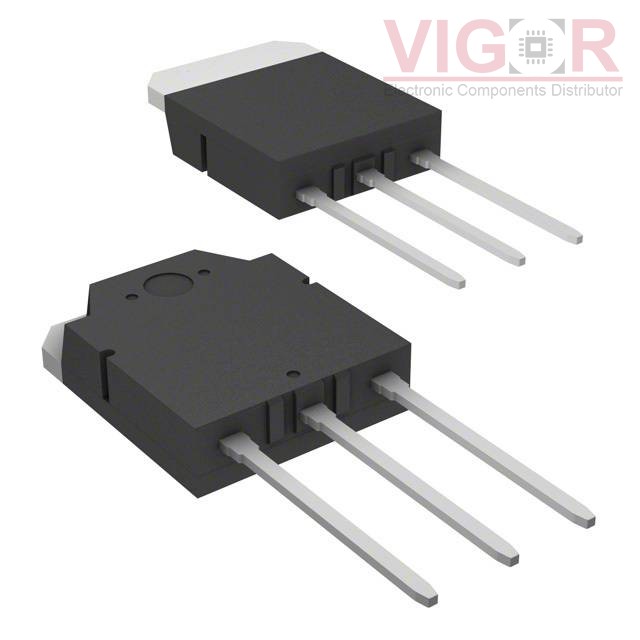

Image is for reference,
please contact us to get the real picture

Part No :

RJP60F5DPK-01#T0

Manufacturer
Renesas Electronics America
Description
IGBT 600V 80A 260.4W
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
RJP60F5DPK-01#T0 PDF
Availability
141 pieces
Unit Price
$3.89000

Current price of RJP60F5DPK-01#T0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RJP60F5DPK-01#T0 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):80 A
Current - Collector Pulsed (Icm):160 A
Vce(on) (Max) @ Vge, Ic:1.8V @ 15V, 40A
Power - Max:260.4 W
Switching Energy:-
Input Type:Standard
Gate Charge:74 nC
Td (on/off) @ 25°C:53ns/90ns
Test Condition:400V, 30A, 5Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3P-3, SC-65-3
Supplier Device Package:TO-3P
