APT50GF120LRG

APT50GF120LRG

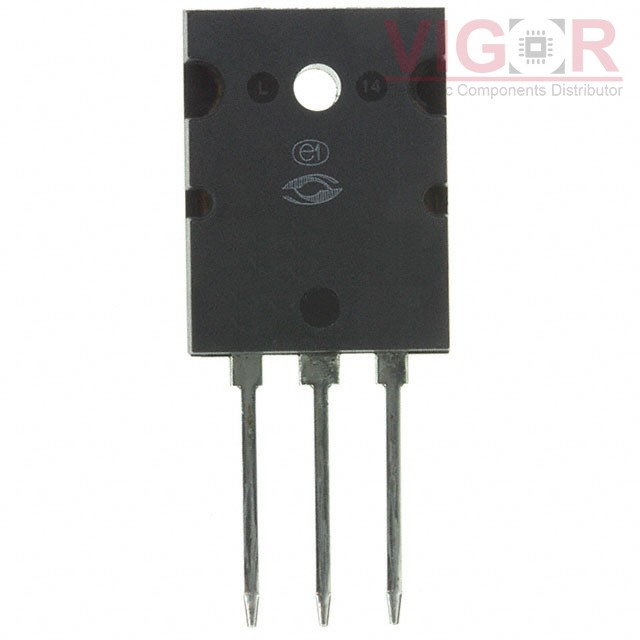

Image is for reference,
please contact us to get the real picture

Part No :

APT50GF120LRG

Manufacturer
Roving Networks / Microchip Technology
Description
IGBT 1200V 135A 781W TO264
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
APT50GF120LRG PDF
Availability
51 pieces
Unit Price
$16.11000

Current price of APT50GF120LRG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

APT50GF120LRG Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:NPT
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):135 A
Current - Collector Pulsed (Icm):150 A
Vce(on) (Max) @ Vge, Ic:3V @ 15V, 50A
Power - Max:781 W
Switching Energy:3.6mJ (on), 2.64mJ (off)
Input Type:Standard
Gate Charge:340 nC
Td (on/off) @ 25°C:25ns/260ns
Test Condition:800V, 50A, 1Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-264-3, TO-264AA
Supplier Device Package:TO-264 [L]
