STGFW20V60F

STGFW20V60F

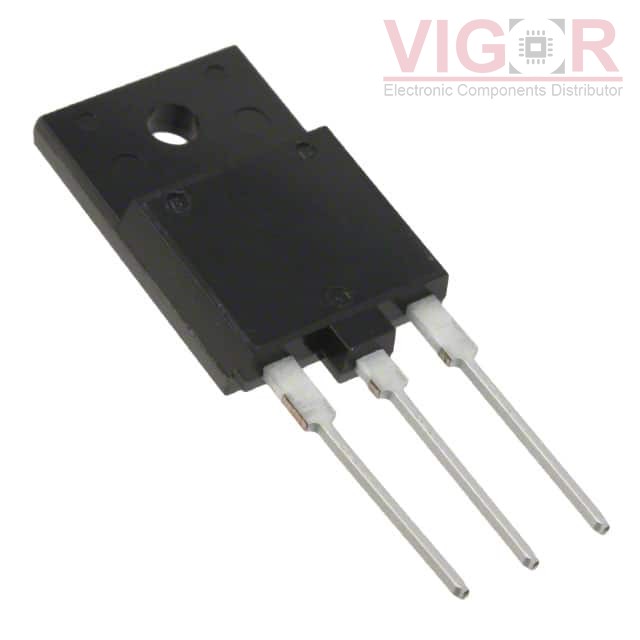

Image is for reference,
please contact us to get the real picture

Part No :

STGFW20V60F

Manufacturer
STMicroelectronics
Description
IGBT 600V 40A 52W TO3PF
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
STGFW20V60F PDF
Availability
0 pieces
Unit Price
$2.19000

Current price of STGFW20V60F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGFW20V60F Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):40 A
Current - Collector Pulsed (Icm):80 A
Vce(on) (Max) @ Vge, Ic:2.2V @ 15V, 20A
Power - Max:52 W
Switching Energy:200µJ (on), 130µJ (off)
Input Type:Standard
Gate Charge:116 nC
Td (on/off) @ 25°C:38ns/149ns
Test Condition:400V, 20A, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3P-3 Full Pack
Supplier Device Package:TO-3PF
