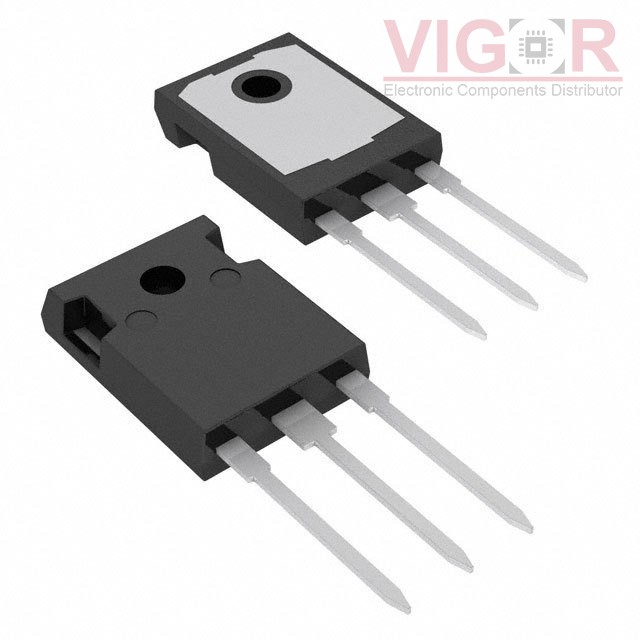

STGWA40S120DF3

STGWA40S120DF3

Image is for reference,
please contact us to get the real picture

Part No :

STGWA40S120DF3

Manufacturer
STMicroelectronics
Description
IGBT 1200V 40A TO247-3L
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
STGWA40S120DF3 PDF
Availability
1 pieces
Unit Price
$12.24000

Current price of STGWA40S120DF3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGWA40S120DF3 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):80 A
Current - Collector Pulsed (Icm):160 A
Vce(on) (Max) @ Vge, Ic:2.15V @ 15V, 40A
Power - Max:468 W
Switching Energy:1.43mJ (on), 3.83mJ (off)
Input Type:Standard
Gate Charge:129 nC
Td (on/off) @ 25°C:35ns/148ns
Test Condition:600V, 40A, 15Ohm, 15V
Reverse Recovery Time (trr):355 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247-3
